Harrows

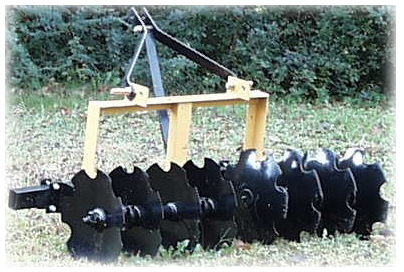

Single Section Harrow
|
These disc harrows are single section harrows designed for small
farm tractors. They are made to ensure dependable service and
long life. The steel frame has three adjustment positions for varying
the cutting angle. Greasable iron bearings are standard. |
Model# |
Discs |
Size |
Length |
Approx Wt. |
DH816 |
8 |
16" |
52" |
250lbs |
DH1016 |
10 |
16" |
62" |
295lbs |
|
Iron Bearing
 |

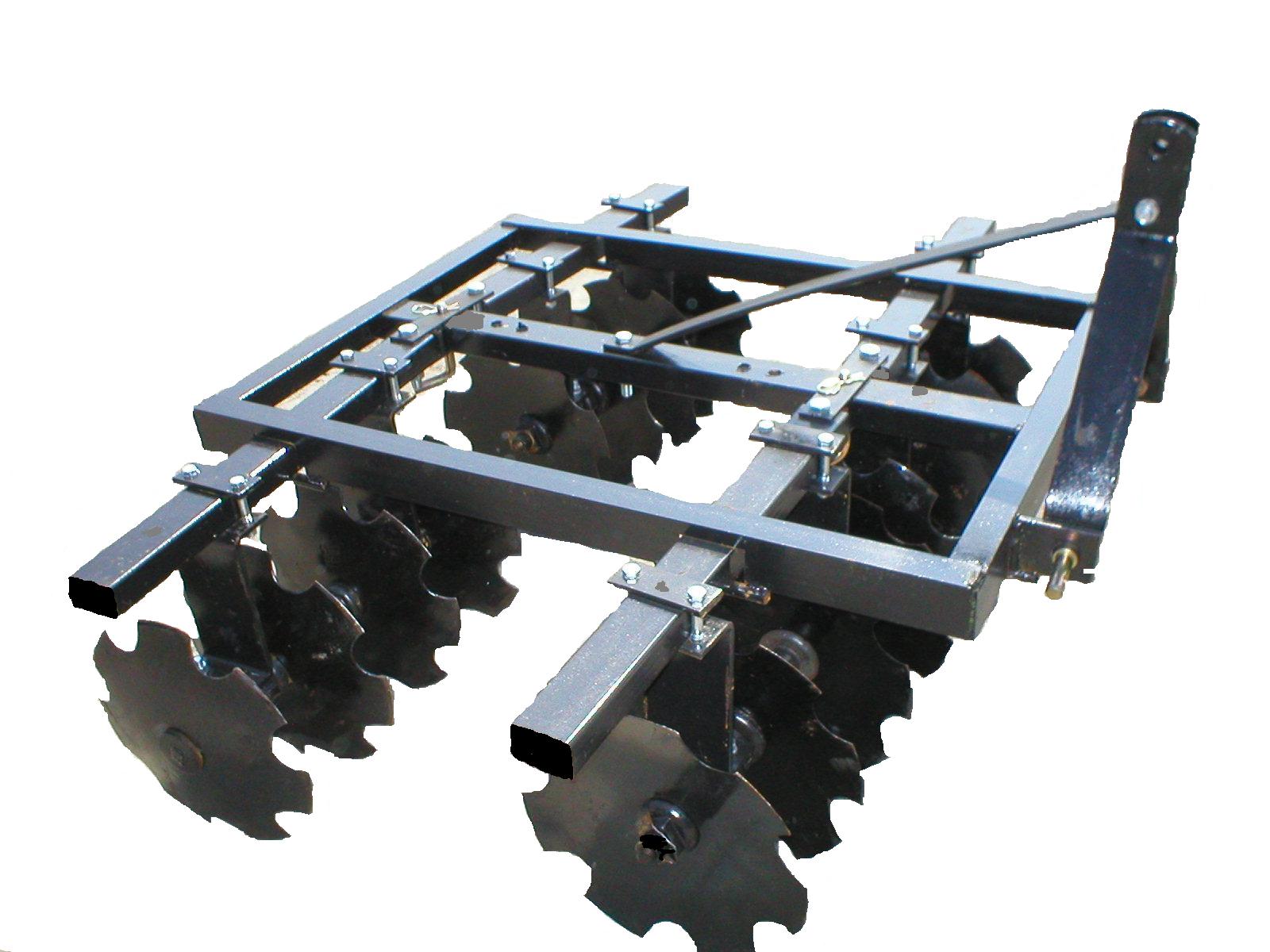

Disc Harrow
|
These disc harrows are adjustable double section disc harrows
designed for 20 to 50 horse power tractors. They are made on a
steel frame and can be ordered with either greaseable iron
bearings or sealed anti-friction bearings. |
Model# |
Discs |
Size |
Bearing |
Cutting
Width |
Approx Wt. |
DH1216 |
12 |
16" |
Iron |
4' |
345lbs |
DH1218 |
12 |
18" |
Iron |
4' |
351lbs |
DH1616 |
16 |
16" |
Iron |
5½' |
437lbs |
DH1618 |
16 |
18" |
Iron |
5½' |
445lbs |
DH2018 |
20 |
18" |
Iron |
6½' |
560lbs |
DH2020 |
20 |
20" |
Iron |
6½' |
570lbs |
DH1216B |
12 |
16" |
Sealed |
4' |
285lbs |
DH1218B |
12 |
18" |
Sealed |
4' |
291lbs |
DH1616B |
16 |
16" |
Sealed |
5½' |
277lbs |
DH1618B |
16 |
18" |
Sealed |
5½' |
285lbs |
DH2018B |
20 |
18" |
Sealed |
6½' |
565lbs |
D2020B |
20 |
20" |
Sealed |
6½' |
575lbs |
|
Sealed Bearing
 |

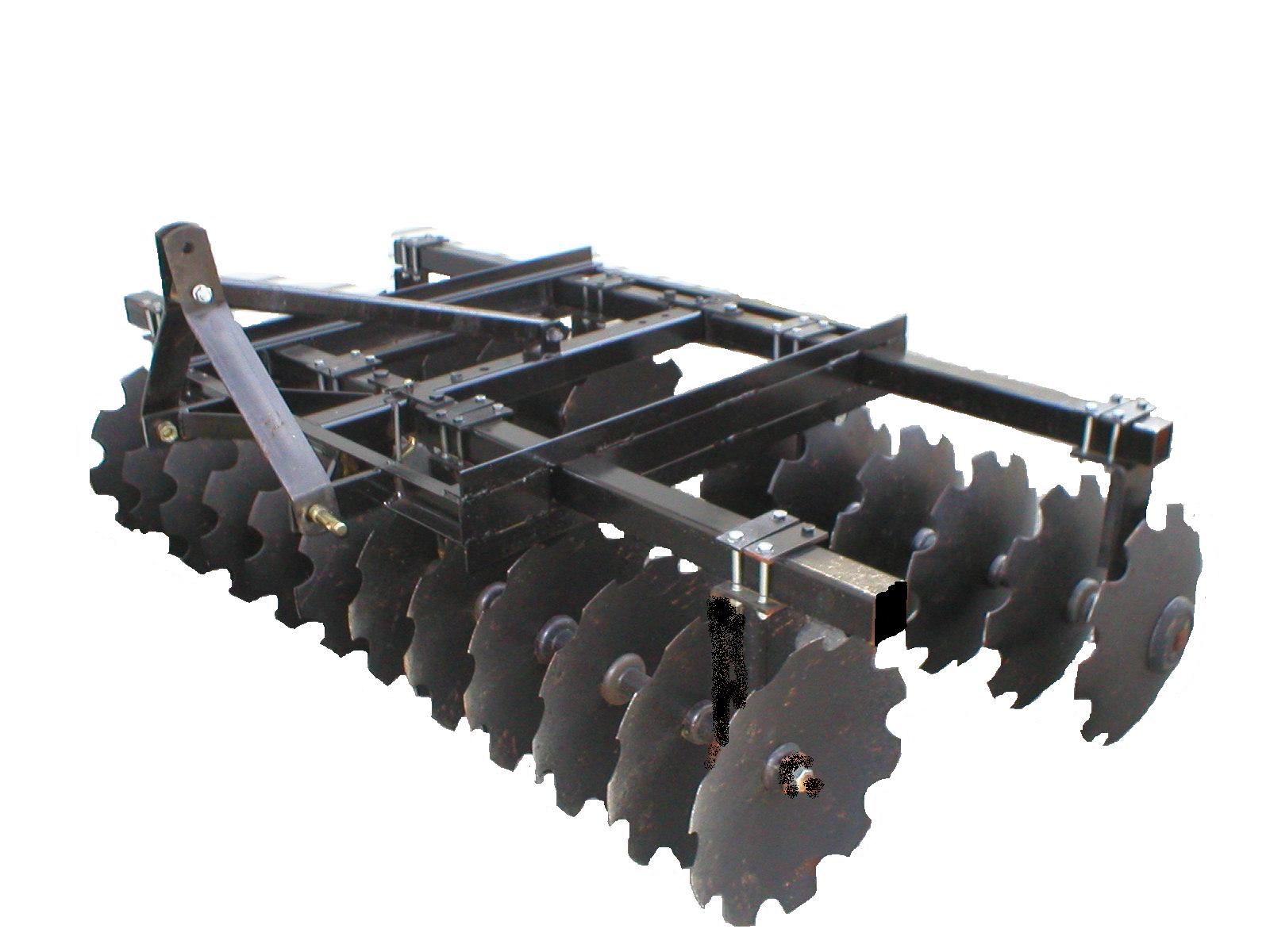

Heavy Disc Harrow
|
Heavy Frame
Sealed Bearings
3" x 3" Harrow Arms
7½" or 9" Spacing |
Pin Adjustment
1" Square Axle
6' to 8' Widths
Category 1, 3Pt. Hitch |
Model# |
Discs |
Size |
Spacing |
Cutting
Width |
Approx Wt. |
HH1620B-9 |
16 |
20" |
9"
|
6' |
850lbs |
HH2020B |
20 |
20" |
7½" |
6½' |
850lbs |
HH2020B-9 |
20 |
20" |
9" |
7' |
870lbs |
HH2420B |
24 |
20" |
7½" |
8' |
885lbs |
|
Sealed Bearing
 |
|
